WHIRLPOOL WVG30 UPRIGHT FREEZERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | WVG30 UPRIGHT FREEZERS WP |
Kód 12NC: | 850461742000 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící mrazáky |
Další podobné modely: | 850461743000, 850461771000, 850461742001, 850461765000, 850461765010, 850461782000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

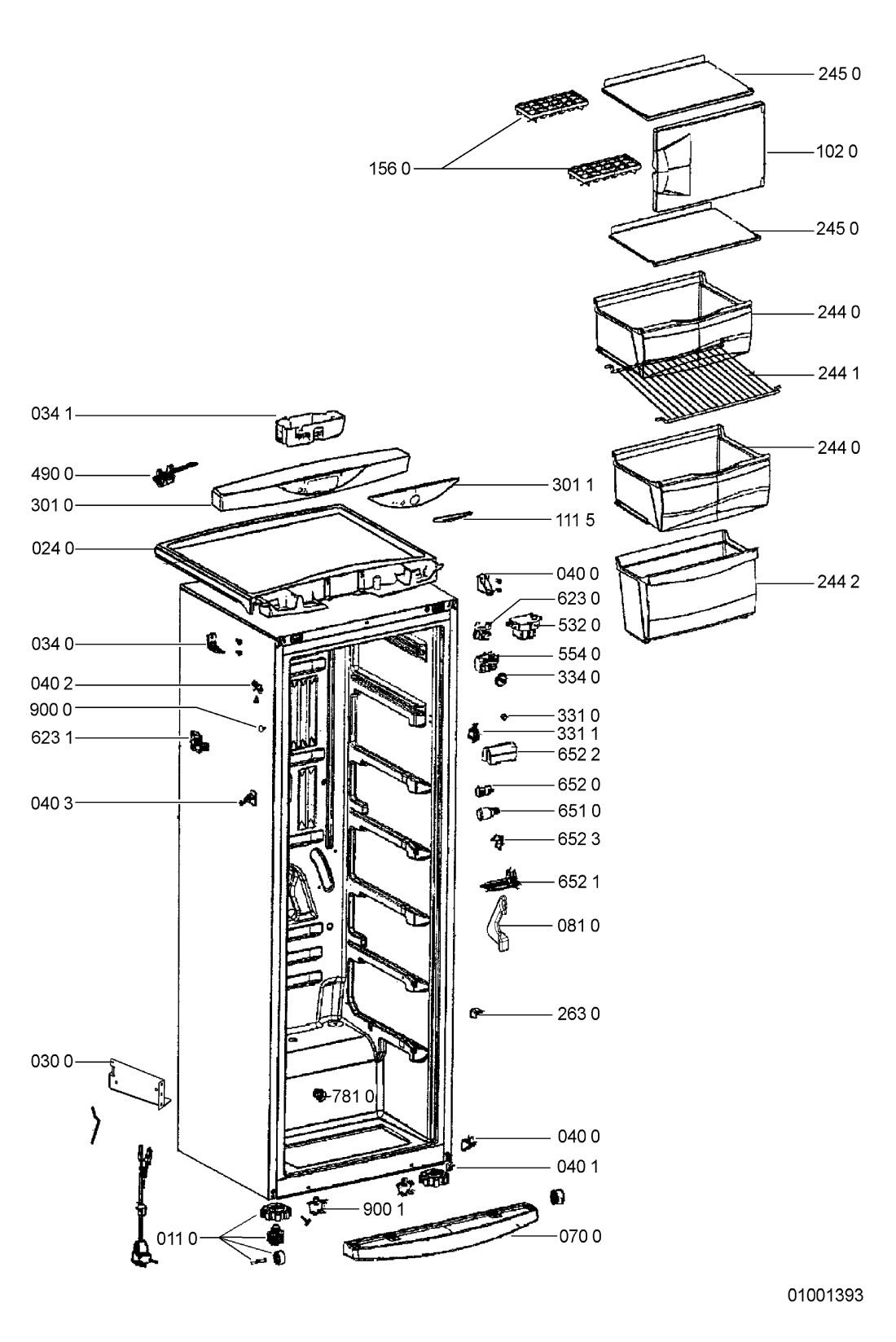

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
0110 WHR55580 |
C00576391
481246248394 |
Adjusting screw.. | Na dotaz | Zadat poptávku | |
0111 WHR55580 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
0240 WHR55580 |
C00491904
481246098058 |
Panel | Na dotaz | Zadat poptávku | |
0300 WHR55580 |
C00485113
481244029451 |
Protector module | Na dotaz | Zadat poptávku | |
0340 WHR55580 |
C00482883
481240478518 |
Support | Na dotaz | Zadat poptávku | |
0341 WHR55580 |
C00482517
481221848019 |
Cabinet | Na dotaz | Zadat poptávku | |
0400 WHR55580 |
C00501909
481241719076 |
Hinge,upper + lower | Na dotaz | Zadat poptávku | |
0401 WHR55580 |
C00491670
481241778082 |
Shim | Na dotaz | Zadat poptávku | |
0402 WHR55580 |
C00488952
481241719038 |
Hinge upper | Na dotaz | Zadat poptávku | |
0403 WHR55580 |
C00488953
481241719039 |
Hinge lower | Na dotaz | Zadat poptávku | |
0470 WHR55580 |
C00529681
481246228347 |
Bushing left | Na dotaz | Zadat poptávku | |
0471 WHR55580 |
C00529680
481246228344 |
Bushing right | Na dotaz | Zadat poptávku | |
0472 WHR55580 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
0700 WHR55580 |
C00576381
481246098038 |
Panel.. | Na dotaz | Zadat poptávku | |
0810 WHR55580 |
C00576443
481252918055 |
Dumper left.. | Na dotaz | Zadat poptávku | |
1010 WHR55580 |
C00576192
481241619349 |
Door freezer white colour.. | Na dotaz | Zadat poptávku | |
1020 WHR55580 |
C00484809
481241618699 |
Evapor.door | Na dotaz | Zadat poptávku | |
1110 WHR55580 |
C00576414
481249848015 |
Base Handle - white colour.. | Na dotaz | Zadat poptávku | |
1111 WHR55580 |
C00621457
481246818228 |
kryt rukojete | 418 Kč
€ 16.50 |
||
1112 WHR55580 |
C00576413
481249818333 |
Insert f.Handle right.. | Na dotaz | Zadat poptávku | |
1113 WHR55580 |
C00574580
481249818334 |
Insert f.Handle left. | Na dotaz | Zadat poptávku | |
1114 WHR55580 |
C00341606
481245918238 |
Nameplate | Na dotaz | Zadat poptávku | |
1115 WHR55580 |
C00576353
481245918226 |
Nameplate white colour.. | Na dotaz | Zadat poptávku | |
1560 WHR55580 |
C00339160
481241848502 |
Icecube tray | Na dotaz | Zadat poptávku | |
1910 WHR55580 |
C00486204
481246818306 |
Gasket | Na dotaz | Zadat poptávku | |
2440 WHR55580 |
C00489101
481241879784 |
Basket | Na dotaz | Zadat poptávku | |
2441 WHR55580 |
C00487580
481241878081 |
Grid | Na dotaz | Zadat poptávku | |
2442 WHR55580 |
C00489100
481241879783 |
Tray | Na dotaz | Zadat poptávku | |
2450 WHR55580 |
C00484963
481241828271 |
Shelf | Na dotaz | Zadat poptávku | |
2630 WHR55580 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
3010 WHR55580 |
C00576371
481246038147 |
Upper front white.. | Na dotaz | Zadat poptávku | |
3011 WHR55580 |
C00488463
481221818012 |
Display | Na dotaz | Zadat poptávku | |
3245 WHR55580 |
C00484030
481246228348 |
Air diffuser | Na dotaz | Zadat poptávku | |
3310 WHR55580 |
C00487508
481241359064 |
Knob | Na dotaz | Zadat poptávku | |
3311 WHR55580 |
C00493519
481241368015 |
Switch | Na dotaz | Zadat poptávku | |
3340 WHR55580 |
C00487366
481241279043 |
Knob thermostat white colour | Na dotaz | Zadat poptávku | |
4020 WHR55580 |
C00574711
481236038892 |
Compressor FGS 100 HA | Na dotaz | Zadat poptávku | |
4021 WHR55580 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
4022 WHR55580 |
C00576151
481240418308 |
Base compressor.. | Na dotaz | Zadat poptávku | |
4200 WHR55580 |
C00484071
481251148284 |
Capacitor Kit | Na dotaz | Zadat poptávku | |
4210 WHR55580 |
C00482198
481212118242 |
capacitor | Na dotaz | Zadat poptávku | |
4400 WHR55580 |
C00488649
481236118341 |
Fan wheel | Na dotaz | Zadat poptávku | |
4430 WHR55580 |
C00574714
481236138051 |
MOTOR VENTILATORA 220V/60HZ | Na dotaz | Zadat poptávku | |
4431 WHR55580 |
C00574941
481246368014 |
Damper. | Na dotaz | Zadat poptávku | |
4432 WHR55580 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
4510 WHR55580 |
C00488466
481221848022 |
Element defrost | Na dotaz | Zadat poptávku | |
4900 WHR55580 |
C00576119
481221848061 |
Cable harness.. | Na dotaz | Zadat poptávku | |
5320 WHR55580 |
C00576138
481232818184 |
Timer 220V/50Hz | Na dotaz | Zadat poptávku | |
5540 WHR55580 |
C00491042
481227148002 |
Thermostat | Na dotaz | Zadat poptávku | |
5640 WHR55580 |
C00486081
481246418077 |
Fuse | Na dotaz | Zadat poptávku | |
6140 WHR55580 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
6230 WHR55580 |
C00484625
481221838145 |
Plug female | Na dotaz | Zadat poptávku | |
6231 WHR55580 |
C00488711
481240418306 |
Lock | Na dotaz | Zadat poptávku | |
6510 WHR55580 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
6520 WHR55580 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
6521 WHR55580 |
C00574731
481240478475 |
Support | Na dotaz | Zadat poptávku | |
6522 WHR55580 |
C00574923
481246228325 |
Lamp shield. | Na dotaz | Zadat poptávku | |
6523 WHR55580 |
C00484600
481213488037 |
Protector ,Lamp | Na dotaz | Zadat poptávku | |
6910 WHR55580 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 57.50 |
||
7400 WHR55580 |
C00332238
481251148336 |
výměník | 2 213 Kč
€ 87.40 |
||
7401 WHR55580 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
7402 WHR55580 |
C00576154
481240438716 |
Support , Condenser.. | Na dotaz | Zadat poptávku | |
7430 WHR55580 |
C00576281
481244079119 |
Chamber,air 220V.. | Na dotaz | Zadat poptávku | |
7450 WHR55580 |
C00486260
481251138179 |
Evaporator | Na dotaz | Zadat poptávku | |
7451 WHR55580 |
C00485136
481244078992 |
Cover evaporator | Na dotaz | Zadat poptávku | |
7452 WHR55580 |
C00482931
481244029361 |
Cabinet | Na dotaz | Zadat poptávku | |
7510 WHR55580 |
C00576468
481246628153 |
Drainhose.. | Na dotaz | Zadat poptávku | |
7640 WHR55580 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
7810 WHR55580 |
C00493822
481253538102 |
Valve | Na dotaz | Zadat poptávku | |
9000 WHR55580 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
9001 WHR55580 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
9002 WHR55580 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
9010 WHR55580 |
C00491491
481240418313 |
Shaft | Na dotaz | Zadat poptávku | |
9040 WHR55580 |
C00342340
481246228342 |
Cover WH | Na dotaz | Zadat poptávku | |
999 WHR55580 |
C00666847 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
