WHIRLPOOL WVG30 IX UPRIGHT FREEZERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WVG30 IX UPRIGHT FREEZERS WP |
| Kód 12NC: | 850461765020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 850461743010 |
Potřebujete servis? Jsme tady pro Vás

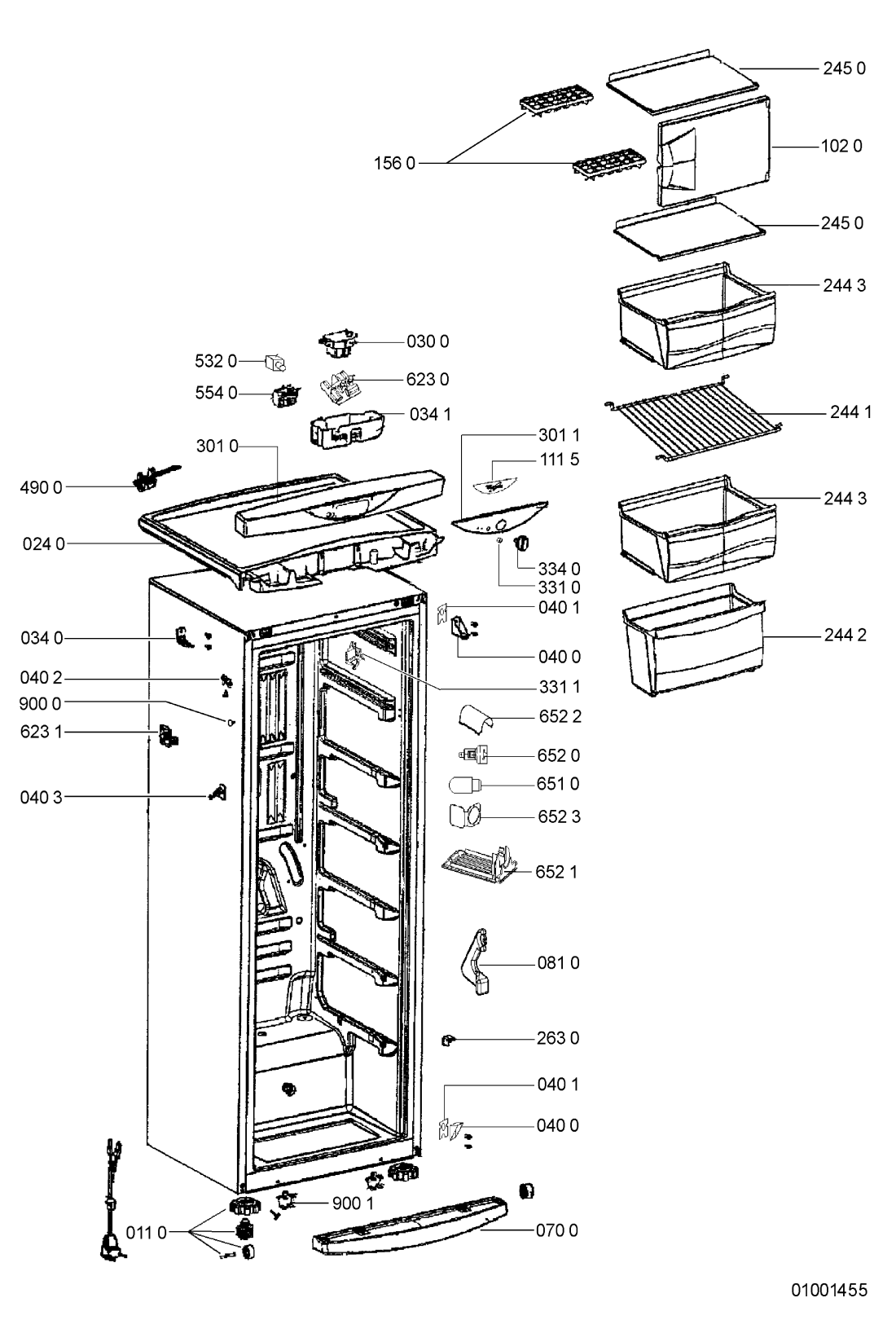

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR61696 |
C00491929
481246238221 |
Foot kit. | Na dotaz | Zadat poptávku | |
| 011 1 WHR61696 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
| 024 0 WHR61696 |
C00576238
481244011133 |
Cover plate black color.. | Na dotaz | Zadat poptávku | |
| 030 0 WHR61696 |
C00576138
481232818184 |
Timer 220V/50Hz | Na dotaz | Zadat poptávku | |
| 034 0 WHR61696 |
C00517539
481240418459 |
Support | Na dotaz | Zadat poptávku | |
| 034 1 WHR61696 |
C00576299
481244229277 |
Elect.parts box black.. | Na dotaz | Zadat poptávku | |
| 040 0 WHR61696 |
C00488983
481241719287 |
Závěs dveří šuplíkového mrazáku (horní/dolní) Whirlpool | 110 Kč
€ 4.30 |
||
| 040 1 WHR61696 |
C00491670
481241778082 |
Shim | Na dotaz | Zadat poptávku | |
| 040 2 WHR61696 |
C00488952
481241719038 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 3 WHR61696 |
C00488953
481241719039 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 047 0 WHR61696 |
C00517557
481241719288 |
Bushing for right hand | Na dotaz | Zadat poptávku | |
| 047 1 WHR61696 |
C00576202
481241719289 |
Bushing left hand.. | Na dotaz | Zadat poptávku | |
| 047 2 WHR61696 |
C00344059
481246228397 |
Bushingupper | Na dotaz | Zadat poptávku | |
| 070 0 WHR61696 |
C00489164
481244029474 |
Plinth black color | Na dotaz | Zadat poptávku | |
| 081 0 WHR61696 |
C00576443
481252918055 |
Dumper left.. | Na dotaz | Zadat poptávku | |
| 101 0 WHR61696 |
C00576198
481241619561 |
Door freezer IN | Na dotaz | Zadat poptávku | |
| 102 0 WHR61696 |
C00484809
481241618699 |
Evapor.door | Na dotaz | Zadat poptávku | |
| 111 0 WHR61696 |
C00377835
481249818284 |
podlozka rukojete | 978 Kč
€ 38.60 |
||
| 111 1 WHR61696 |
C00621457
481246818228 |
kryt rukojete | 418 Kč
€ 16.50 |
||
| 111 2 WHR61696 |
C00576413
481249818333 |
Insert f.Handle right.. | Na dotaz | Zadat poptávku | |
| 111 3 WHR61696 |
C00574580
481249818334 |
Insert f.Handle left. | Na dotaz | Zadat poptávku | |
| 111 5 WHR61696 |
C00576369
481245918253 |
Nameplate black.. | Na dotaz | Zadat poptávku | |
| 156 0 WHR61696 |
C00339160
481241848502 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 191 0 WHR61696 |
C00486204
481246818306 |
Gasket | Na dotaz | Zadat poptávku | |
| 244 1 WHR61696 |
C00487580
481241878081 |
Grid | Na dotaz | Zadat poptávku | |
| 244 2 WHR61696 |
C00489100
481241879783 |
Tray | Na dotaz | Zadat poptávku | |
| 244 3 WHR61696 |
C00489101
481241879784 |
Basket | Na dotaz | Zadat poptávku | |
| 245 0 WHR61696 |
C00484963
481241828271 |
Shelf | Na dotaz | Zadat poptávku | |
| 263 0 WHR61696 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
| 301 0 WHR61696 |
C00576389
481246228642 |
Cover black color.. | Na dotaz | Zadat poptávku | |
| 301 1 WHR61696 |
C00576323
481245310316 |
Control panel black color.. | Na dotaz | Zadat poptávku | |
| 324 5 WHR61696 |
C00484030
481246228348 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 331 0 WHR61696 |
C00576174
481241458265 |
Knob.. | Na dotaz | Zadat poptávku | |
| 331 1 WHR61696 |
C00517533
481227818008 |
Switch Lamp | Na dotaz | Zadat poptávku | |
| 334 0 WHR61696 |
C00576175
481241458266 |
Knob thermostat black color.. | Na dotaz | Zadat poptávku | |
| 402 0 WHR61696 |
C00574711
481236038892 |
Compressor FGS 100 HA | Na dotaz | Zadat poptávku | |
| 402 1 WHR61696 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
| 402 2 WHR61696 |
C00576151
481240418308 |
Base compressor.. | Na dotaz | Zadat poptávku | |
| 420 0 WHR61696 |
C00484071
481251148284 |
Capacitor Kit | Na dotaz | Zadat poptávku | |
| 421 0 WHR61696 |
C00482198
481212118242 |
capacitor | Na dotaz | Zadat poptávku | |
| 440 0 WHR61696 |
C00488649
481236118341 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 443 0 WHR61696 |
C00574714
481236138051 |
MOTOR VENTILATORA 220V/60HZ | Na dotaz | Zadat poptávku | |
| 443 1 WHR61696 |
C00574941
481246368014 |
Damper. | Na dotaz | Zadat poptávku | |
| 443 2 WHR61696 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR61696 |
C00488466
481221848022 |
Element defrost | Na dotaz | Zadat poptávku | |
| 490 0 WHR61696 |
C00576119
481221848061 |
Cable harness.. | Na dotaz | Zadat poptávku | |
| 532 0 WHR61696 |
C00493520
481241368017 |
Switch fast freezing | Na dotaz | Zadat poptávku | |
| 554 0 WHR61696 |
C00491042
481227148002 |
Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR61696 |
C00486081
481246418077 |
Fuse | Na dotaz | Zadat poptávku | |
| 614 0 WHR61696 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 623 0 WHR61696 |
C00484625
481221838145 |
Plug female | Na dotaz | Zadat poptávku | |
| 623 1 WHR61696 |
C00488711
481240418306 |
Lock | Na dotaz | Zadat poptávku | |
| 651 0 WHR61696 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR61696 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR61696 |
C00574731
481240478475 |
Support | Na dotaz | Zadat poptávku | |
| 652 2 WHR61696 |
C00574923
481246228325 |
Lamp shield. | Na dotaz | Zadat poptávku | |
| 652 3 WHR61696 |
C00484600
481213488037 |
Protector ,Lamp | Na dotaz | Zadat poptávku | |
| 691 0 WHR61696 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 57.50 |
||
| 740 0 WHR61696 |
C00332238
481251148336 |
výměník | 2 213 Kč
€ 87.40 |
||
| 740 1 WHR61696 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 740 2 WHR61696 |
C00576154
481240438716 |
Support , Condenser.. | Na dotaz | Zadat poptávku | |
| 743 0 WHR61696 |
C00576281
481244079119 |
Chamber,air 220V.. | Na dotaz | Zadat poptávku | |
| 745 0 WHR61696 |
C00486260
481251138179 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR61696 |
C00485136
481244078992 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR61696 |
C00482931
481244029361 |
Cabinet | Na dotaz | Zadat poptávku | |
| 751 0 WHR61696 |
C00576468
481246628153 |
Drainhose.. | Na dotaz | Zadat poptávku | |
| 764 0 WHR61696 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 900 0 WHR61696 |
C00490978
481226278022 |
Cap | Na dotaz | Zadat poptávku | |
| 900 1 WHR61696 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 900 2 WHR61696 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 901 0 WHR61696 |
C00491491
481240418313 |
Shaft | Na dotaz | Zadat poptávku | |
| 904 0 WHR61696 |
C00555654
481253288047 |
Stopper.. | Na dotaz | Zadat poptávku | |
| 999 WHR61696 |
C00677219 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
