Komerční kód: | WVG 303 |
Kód 12NC: | 850462942000 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící mrazáky |
Další podobné modely: | 850462965000, 850462969000 |
Potřebujete servis? Jsme tady pro Vás

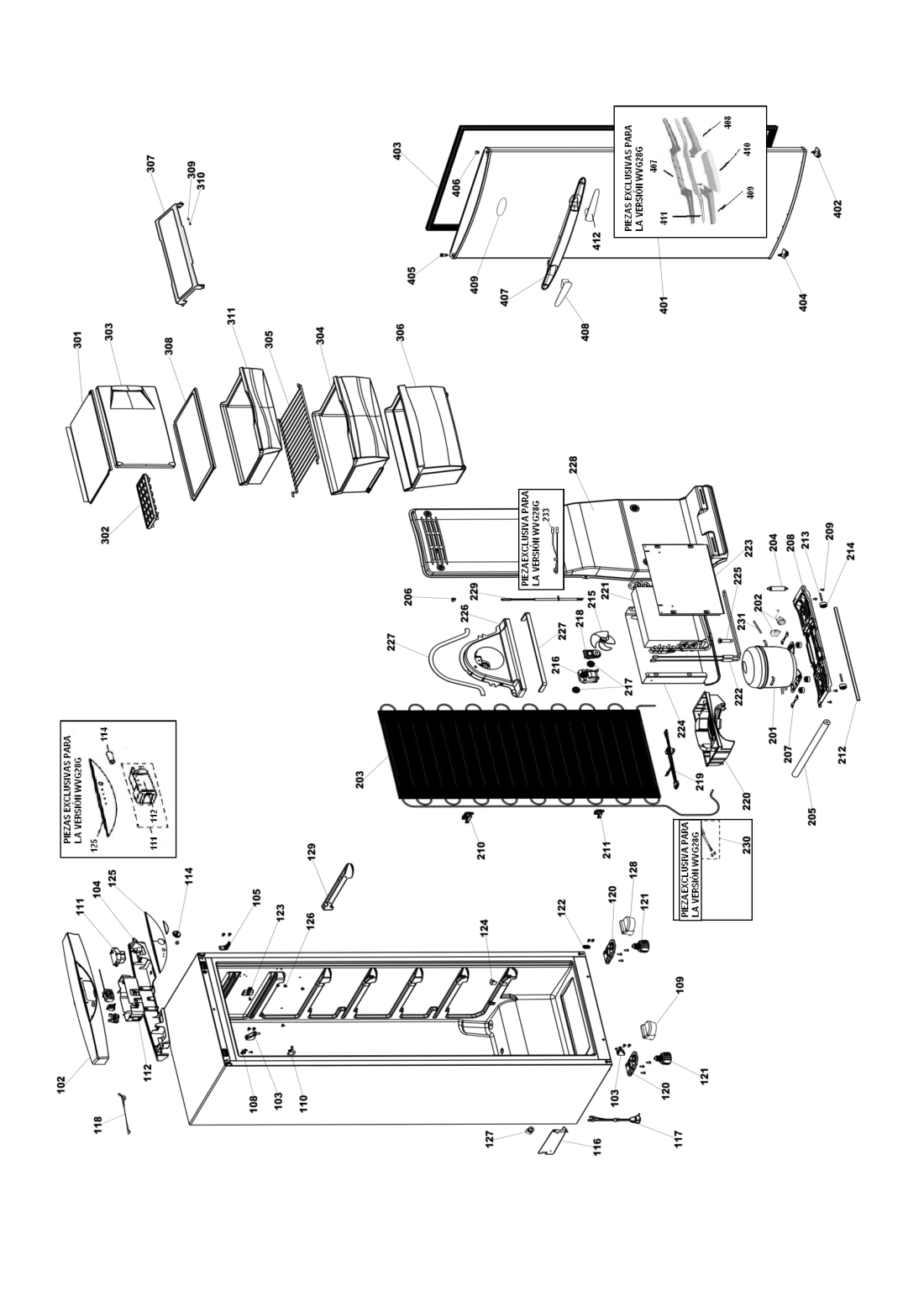

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
102 WHR38895 |
C00404593
481246049874 |
Control panel WH | Na dotaz | Zadat poptávku | |
103 WHR38895 |
C00488983
481241719287 |
Závěs dveří šuplíkového mrazáku (horní/dolní) Whirlpool | 110 Kč
€ 4.30 |
||
104 WHR38895 |
C00383489
480132101262 |
Console | Na dotaz | Zadat poptávku | |
105 WHR38895 |
C00482883
481240478518 |
Support | Na dotaz | Zadat poptávku | |
108 WHR38895 |
C00488952
481241719038 |
Hinge upper | Na dotaz | Zadat poptávku | |
109 WHR38895 |
C00393828
480131100711 |
Cover | Na dotaz | Zadat poptávku | |
110 WHR38895 |
C00402729
481241719367 |
Hinge lower | Na dotaz | Zadat poptávku | |
111 WHR38895 |
C00394095
480132101273 |
Control board | Na dotaz | Zadat poptávku | |
112 WHR38895 |
C00393807
480131100663 |
Protector Control box | Na dotaz | Zadat poptávku | |
114 WHR38895 |
C00394092
480132101269 |
Knob | Na dotaz | Zadat poptávku | |
116 WHR38895 |
C00485113
481244029451 |
Protector module | Na dotaz | Zadat poptávku | |
117 WHR38895 |
C00415307
482000017584 |
Mains cable | Na dotaz | Zadat poptávku | |
118 WHR38895 |
C00394096
480132101274 |
Cable harness | Na dotaz | Zadat poptávku | |
120 WHR38895 |
C00401971
481240449613 |
Support adjusting screw | Na dotaz | Zadat poptávku | |
121 WHR38895 |
C00393814
480131100695 |
Foot | Na dotaz | Zadat poptávku | |
122 WHR38895 |
C00319327
481246098059 |
Cover | Na dotaz | Zadat poptávku | |
123 WHR38895 |
C00488711
481240418306 |
Lock | Na dotaz | Zadat poptávku | |
124 WHR38895 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
125 WHR38895 |
C00394091
480132101268 |
Display | Na dotaz | Zadat poptávku | |
126 WHR38895 |
C00490978
481226278022 |
Cap | Na dotaz | Zadat poptávku | |
127 WHR38895 |
C00493822
481253538102 |
Valve | Na dotaz | Zadat poptávku | |
128 WHR38895 |
C00393827
480131100709 |
Cover | Na dotaz | Zadat poptávku | |
129 WHR38895 |
C00402814
481241818714 |
Rail right | Na dotaz | Zadat poptávku | |
129 WHR38895 |
C00402815
481241818715 |
Rail left | Na dotaz | Zadat poptávku | |
201 WHR38895 |
C00394098
480132101276 |
Compressor EGAS100HLR | Na dotaz | Zadat poptávku | |
202 WHR38895 |
C00394099
480132101277 |
Relay | Na dotaz | Zadat poptávku | |
203 WHR38895 |
C00393820
480131100702 |
Condenser | Na dotaz | Zadat poptávku | |
204 WHR38895 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
205 WHR38895 |
C00415308
482000017585 |
Gasket | Na dotaz | Zadat poptávku | |
206 WHR38895 |
C00576410
481249148033 |
Clip fix.. | Na dotaz | Zadat poptávku | |
207 WHR38895 |
C00500771
481236038783 |
Strap ,compressor | Na dotaz | Zadat poptávku | |
208 WHR38895 |
C00393837
480131100721 |
Base Compressor | Na dotaz | Zadat poptávku | |
209 WHR38895 |
C00415072
482000016432 |
Screw M10x9,5mm | Na dotaz | Zadat poptávku | |
210 WHR38895 |
C00482840
481240418443 |
Support condenser upper | Na dotaz | Zadat poptávku | |
211 WHR38895 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
212 WHR38895 |
C00404034
481245298313 |
Protector | Na dotaz | Zadat poptávku | |
213 WHR38895 |
C00491491
481240418313 |
Shaft | Na dotaz | Zadat poptávku | |
214 WHR38895 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
215 WHR38895 |
C00488649
481236118341 |
Fan wheel | Na dotaz | Zadat poptávku | |
216 WHR38895 |
C00311429
481236118635 |
motor ventilatoru | 3 403 Kč
€ 134.30 |
||
217 WHR38895 |
C00485983
481246228345 |
Damper | Na dotaz | Zadat poptávku | |
218 WHR38895 |
C00345190
480132102368 |
Support Motor fan. | Na dotaz | Zadat poptávku | |
219 WHR38895 |
C00405520
481251148485 |
Fuse bi-metal | Na dotaz | Zadat poptávku | |
220 WHR38895 |
C00377666
481241818687 |
Tray Compressor | Na dotaz | Zadat poptávku | |
221 WHR38895 |
C00486260
481251138179 |
Evaporator | Na dotaz | Zadat poptávku | |
222 WHR38895 |
C00400718
481221848187 |
Heating element 500W 200V | Na dotaz | Zadat poptávku | |
223 WHR38895 |
C00485136
481244078992 |
Cover evaporator | Na dotaz | Zadat poptávku | |
224 WHR38895 |
C00482931
481244029361 |
Cabinet | Na dotaz | Zadat poptávku | |
225 WHR38895 |
C00405597
481253029378 |
Drainpipe lower | Na dotaz | Zadat poptávku | |
226 WHR38895 |
C00482950
481244078993 |
Cabinet | Na dotaz | Zadat poptávku | |
227 WHR38895 |
C00326623
481202078223 |
Insulation | Na dotaz | Zadat poptávku | |
228 WHR38895 |
C00484030
481246228348 |
Air diffuser | Na dotaz | Zadat poptávku | |
229 WHR38895 |
C00394094
480132101272 |
Thermofuse | Na dotaz | Zadat poptávku | |
230 WHR38895 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 57.50 |
||
231 WHR38895 |
C00405578
481252648274 |
Tube | Na dotaz | Zadat poptávku | |
233 WHR38895 |
C00401353
481232178264 |
Cable harness | Na dotaz | Zadat poptávku | |
301 WHR38895 |
C00484963
481241828271 |
Shelf | Na dotaz | Zadat poptávku | |
302 WHR38895 |
C00345152
482000003370 |
Icecube tray. | Na dotaz | Zadat poptávku | |
303 WHR38895 |
C00408301
482000003321 |
Door inner | Na dotaz | Zadat poptávku | |
304 WHR38895 |
C00402876
481241820092 |
Drawer large | Na dotaz | Zadat poptávku | |
305 WHR38895 |
C00487580
481241878081 |
Grid | Na dotaz | Zadat poptávku | |
306 WHR38895 |
C00408306
482000003326 |
Drawer | Na dotaz | Zadat poptávku | |
307 WHR38895 |
C00402874
481241820089 |
Glass shelf accessory | Na dotaz | Zadat poptávku | |
308 WHR38895 |
C00402875
481241820091 |
Glass shelf | Na dotaz | Zadat poptávku | |
309 WHR38895 |
C00329054
481240448923 |
Support | Na dotaz | Zadat poptávku | |
310 WHR38895 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
311 WHR38895 |
C00394090
480132101267 |
Drawer small | Na dotaz | Zadat poptávku | |
401 WHR38895 |
C00394087
480132101264 |
Door | Na dotaz | Zadat poptávku | |
402 WHR38895 |
C00491933
481246258091 |
Stop door right | Na dotaz | Zadat poptávku | |
403 WHR38895 |
C00486204
481246818306 |
Gasket | Na dotaz | Zadat poptávku | |
405 WHR38895 |
C00344062
481253288067 |
Bushing WH | Na dotaz | Zadat poptávku | |
406 WHR38895 |
C00408303
482000003323 |
Bushing | Na dotaz | Zadat poptávku | |
407 WHR38895 |
C00405357
481249818786 |
Support Handle | Na dotaz | Zadat poptávku | |
408 WHR38895 |
C00405358
481249818788 |
Handle right | Na dotaz | Zadat poptávku | |
409 WHR38895 |
C00415309
482000017586 |
Nameplate | Na dotaz | Zadat poptávku | |
410 WHR38895 |
C00380520
481249818787 |
Cover Handle | Na dotaz | Zadat poptávku | |
411 WHR38895 |
C00394089
480132101266 |
Insert Handle | Na dotaz | Zadat poptávku | |
412 WHR38895 |
C00405359
481249818789 |
Handle left | Na dotaz | Zadat poptávku |
